P8JSY3MD
XELITE
P8JSY3MD
3W
5 - 24 Vdc
1-24W
The P8JSY3MD series stands out as a high-efficiency, isolated DC-DC converter, boasting low no-load power consumption and robust short circuit protection. Ideal for use in smart modules and electronic control systems, this series is recognized for its reliability and efficiency. The SMD 3W Isolated Converter for High-Density PCBs excels in compact design, making it perfect for space-constrained applications. Furthermore, the SMD Module 3W DC-DC Converter for Industrial Use is tailored for the rigors of industrial environments, ensuring consistent performance even under demanding conditions. Both converters are engineered for versatility and reliability, making them indispensable components in modern electronics.
Specifications
| Package Type | SMD |
| Voltage Accuracy | ±2% |
| Ripple & Noise | 100mV_max |
| Operating Temperature | -40 to + 105°C
|

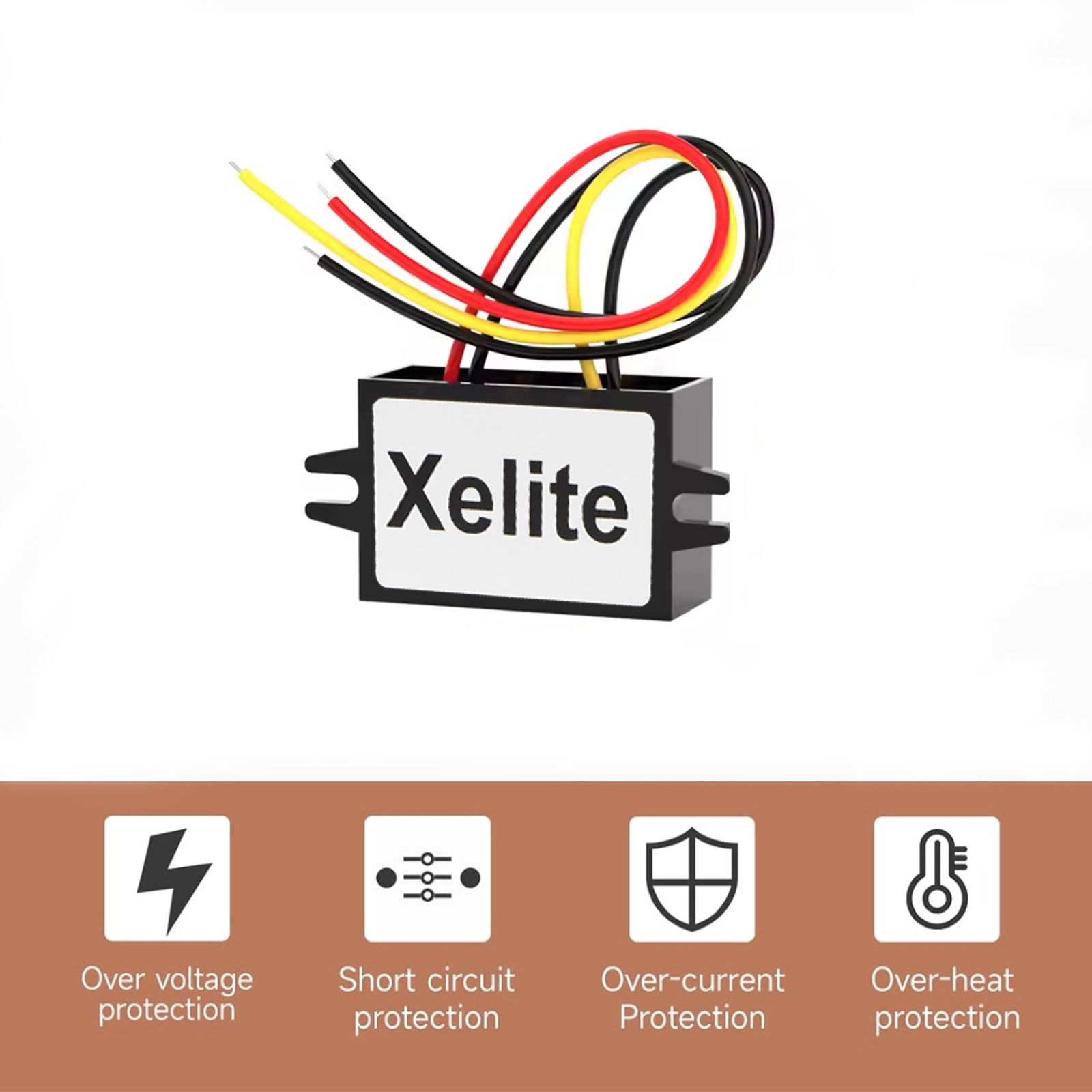

Protection | Short Circuit |
| Dimensions L*W*H (mm) | 43.68mm x 23mm x 10mm
|
| Typical application |  |
ALL MODELS
| Model Number | Power(W) | Input Voltage(Vdc) | Output Voltage(Vdc) | Output Current (mA) |
| P8JSY3MD-050 | 3 | 9 - 42 | 5 | 600 |
| P8JSY3MD-120 | 3 | 9 - 42 | 12 | 250 |
| P8JSY3MD-150 | 3 | 9 - 42 | 15 | 200 |
| P8JSY3MD-240 | 3 | 9 - 42 | 24 | 125 |
The P8JSY3MD series stands out as a high-efficiency, isolated DC-DC converter, boasting low no-load power consumption and robust short circuit protection. Ideal for use in smart modules and electronic control systems, this series is recognized for its reliability and efficiency. The SMD 3W Isolated Converter for High-Density PCBs excels in compact design, making it perfect for space-constrained applications. Furthermore, the SMD Module 3W DC-DC Converter for Industrial Use is tailored for the rigors of industrial environments, ensuring consistent performance even under demanding conditions. Both converters are engineered for versatility and reliability, making them indispensable components in modern electronics.
Specifications
| Package Type | SMD |
| Voltage Accuracy | ±2% |
| Ripple & Noise | 100mV_max |
| Operating Temperature | -40 to + 105°C
|
Protection | Short Circuit |
| Dimensions L*W*H (mm) | 43.68mm x 23mm x 10mm
|
| Typical application | |
ALL MODELS
| Model Number | Power(W) | Input Voltage(Vdc) | Output Voltage(Vdc) | Output Current (mA) |
| P8JSY3MD-050 | 3 | 9 - 42 | 5 | 600 |
| P8JSY3MD-120 | 3 | 9 - 42 | 12 | 250 |
| P8JSY3MD-150 | 3 | 9 - 42 | 15 | 200 |
| P8JSY3MD-240 | 3 | 9 - 42 | 24 | 125 |
